Viking Pump Customizable Stainless Steel Pumps

BrandViking Pump

Product1127C / 1227C / 127C / 227C / 4127C / 4227C – Stainless Steel Pumps

The newest evolution of Viking universal pumps is designed for increased modularity and customization options, with stainless steel construction for corrosion resistance over a wider pH range. Choose your Sealing, Drives and Porting. The U-Plus bracket, available on H-QS sizes, offers seal location in the stuffing box or behind the rotor, with the option of cartridge or component mechanical seals, packing, or O-Pro seals. Ideal for challenging applications, these Viking pumps are dimensionally interchangeable with legacy stainless steel products.

C Series Universal Stainless Steel Pumps

Pump Application Liquids

Black Liquor Soap
Creams (Medicinal, Cosmetic)
Greases
Lotions
Detergent Slurry
Quaternary Ammonium Compounds
Shampoo
Tall Oil Soap
High Fructose Corn Syrup (HFCS)
Lecithin
Massecuite
Sugar Magma
Hot Melt
Additives

Biofuels
Caustic (Sodium Hydroxide)
Cooking Oils
Crude Oils
Edible Oils
Glycol (Ethylene Glycol, Ethylene Alcohol)
Inks
Latex
Paints
Polyvinyl Acetate (PVAC)
Resins
Soaps
Surfactants
Water Treatment Polymer

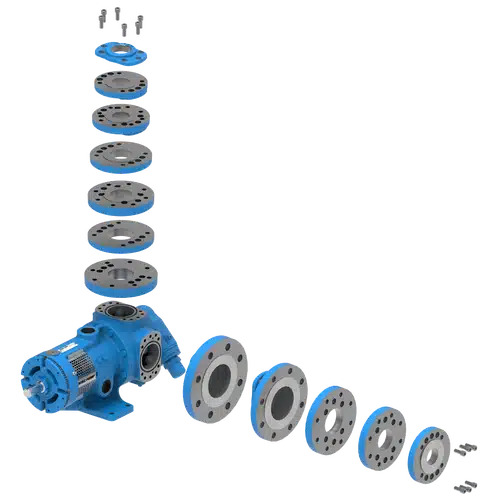

Flexible ProPort Casing

The ProPort casing allows flexibility when connecting pumps to piping. The design uses mounting pads on each port designed to fit a variety of different flange types and sizes. In addition, the ProPort casing uses standard casing drains and standard internal circulation holes. Either flat gaskets or o-rings can be used for sealing between pump sections including the bracket, casing, head and ports.

Viking Pump Series C Specifications

Capacity	to 320 GPM to 73 m³/h
Viscosity	28 to 2,000,000 SSU 1 to 440,000 cSt
Pressure	to 150 PSI to 10 Bar
Temperature	-120 to +500 °F -85 to + 260 °C
Porting	Right Angle (90°) (Rotatable Casing), H-Q Opposite (180°) (Rotatable Casing), H-QS NPT Flanged (ASME / ANSI or DIN Compatible)
Drives	R Offset Gear Reducer Drive P Purchased Gear Reducer Drive D Direct-Mounted Drive V Drive \| V-Belt Drive
Mounting	Foot Mount
Sealing	O-Pro® Seal Packing Seal Component Mechanical Seal Cartridge Mechanical Seal
