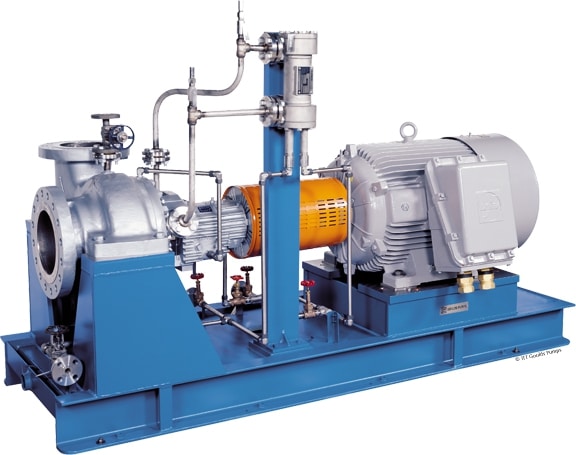

ITT Goulds Pump Model 3700 – API 610 OH2 Overhung Pump

BrandITT Goulds Pump
ProductModel 3700 – API 610 OH2 Overhung Pump

Goulds model 3700 API 610 (OH2) (ISO 13709) centerlined mounted process pumps are high temperature and pressure process pumps designed for optimum reliability. Model 3700 pumps meet or exceed ISO 13709 and API 610 11th edition. These single stage, overhung, radially split pumps are available in 54 casing sizes with a choice of impellers with most casings.

Pump Applications

  • Petroleum refining, production and distribution
  • Petrochemical and demanding chemical processing
  • High-temperature applications including boiler circulation
  • General industrial applications requiring high temperatures or pressures
  • Column Reflux
  • Column Charge
  • Column Bottoms
  • Reboiler
  • Stabilizer Overhead
  • Injection
  • Fuel Blending
  • Heat Transfer
  • Slop Gas Oil
  • Heavy Gas Oil
  • Stripper Overhead
  • Offsite Hydrocarbon Transfer
  • Hot Oil
  • Reactor Feed
  • Scrubber Circulation
  • Tower Bottoms


Proven API 610 Nozzle-Load Design

Standard features for optimum reliability include a rugged casing and baseplate/pedestal support system that provides flange-loading capability greater than the API 610 / ISO 13709 requirements without the use of a bearing frame support.


ITT Goulds Model 3700 Specifications


to 8500 GPM (1930 m3/h)


to 1200 feet (360 m)


to 800° F (425° C)


to 870 PSIG (60 Bar)


Related Products

3700LF for low-flow services
