ITT Goulds Pump Model 3996 – ANSI In-Line Process Pump

BrandITT Goulds Pump
ProductModel 3996 – ANSI In-Line Process Pump

Goulds 3996 process pumps are provide superior performance for in-line services of the Chemical Process Industries.

Pump Applications

  • Caustic transfer
  • Acid unloading
  • Monomer/Polymer transfer
  • Liquid nitrogen
  • Liquid ammonia
  • Reflux and light tower bottoms
  • Waste acid recovery
  • Pickle liquor circulation
  • Chilled water
  • Filter feed
  • Condensate return


Preferred In-Line Design for Cost Savings

Model 3996 in-line pumps are popular because they require minimal floor space. Installation is simple since the unit is mounted directly in the line like a valve, and as a result, installation costs are lower. The pump is not subject to misalignment due to pipe strain or temperature changes, and no field alignment is required.

The 3996 features the preferred flexibly-coupled/integral bearing design. This bearing design is favored over close-coupled in-line pumps, which are difficult to service, or rigid-coupled in-line pumps, which have long unsupported shafts.

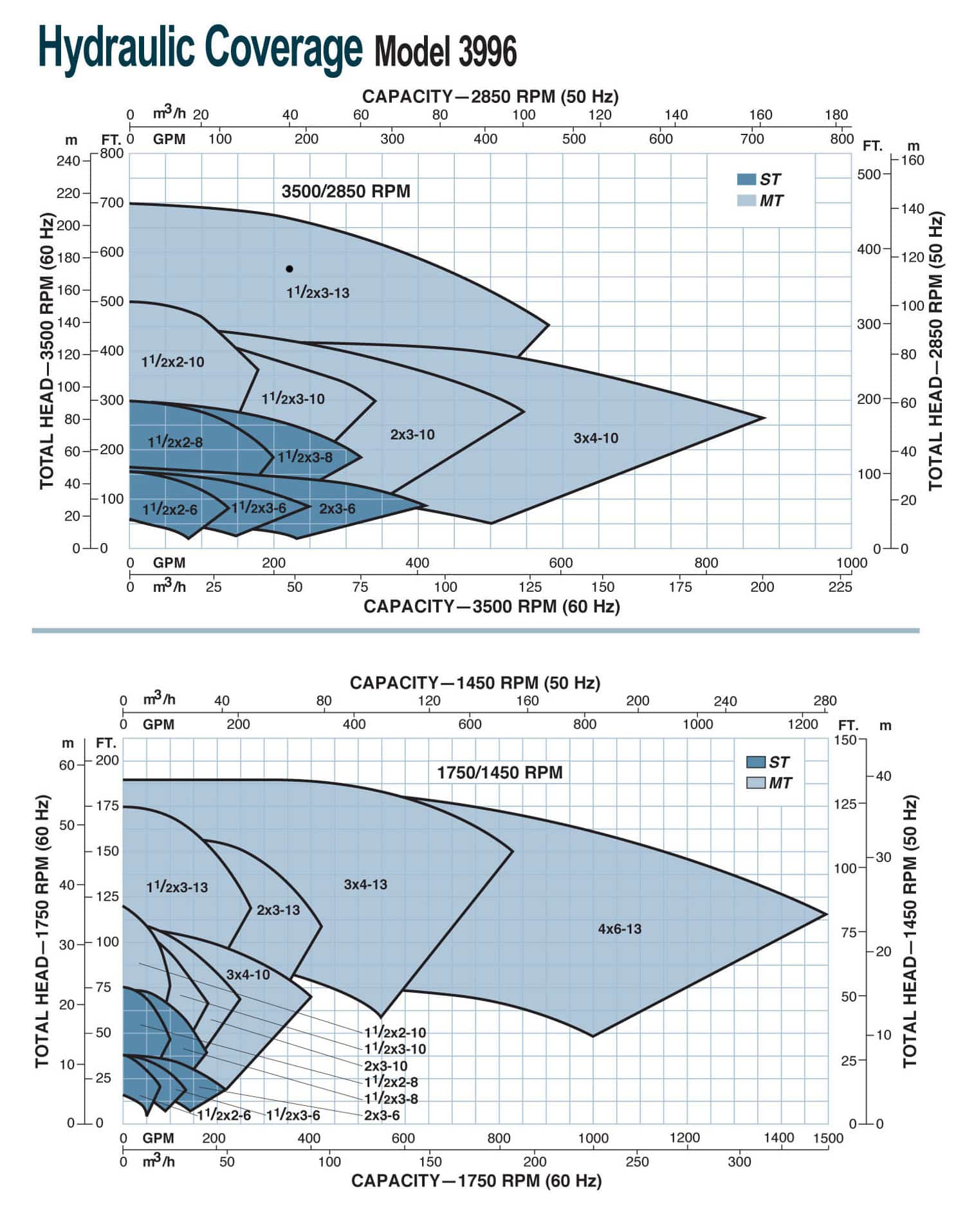

ITT Goulds Model 3996 Specifications


to 1400 GPM (318 m3/h)


Heads to 700 feet (213 m)


to 500° F (260° C)


to 375 PSIG (2586 kPa)
