ITT Goulds Pumps Model 3175 and Model 3180 – Large End Suction Pumps

BrandITT Goulds Pump
ProductModel 3175 and Model 3180 – Large End Suction Pumps

Goulds 3175 model paper stock/process pumps are designed for the toughest applications in Pulp& Paper and Process industries. These pumps feature i-ALERT intelligent monitoring. Materials of instruction include Cast Iron and 316 Stainless Steel, and they are also available in any machinable alloy such as 317SS, 317LSS, 316LSS, Alloy 20, CD4MCuN, 6-7% moly, Titanium, Hastelloy B and C. The 3180 is the heavy-duty process pump features a robust design to handle heavy duty process pumping applications.

Pump Applications

  • Pulp & Paper
  • Chemical
  • Petroleum
  • Steel
  • Food
  • General


i-ALERT Condition Monitoring

Both the 3175 and 3180 models feature i-ALERT condition monitoring, which constantly measures vibration and temperature at the thrust bearing. General pump health is indicated by colored LEDs, and catastrophic failures can be avoided through early warnings of improper operation.

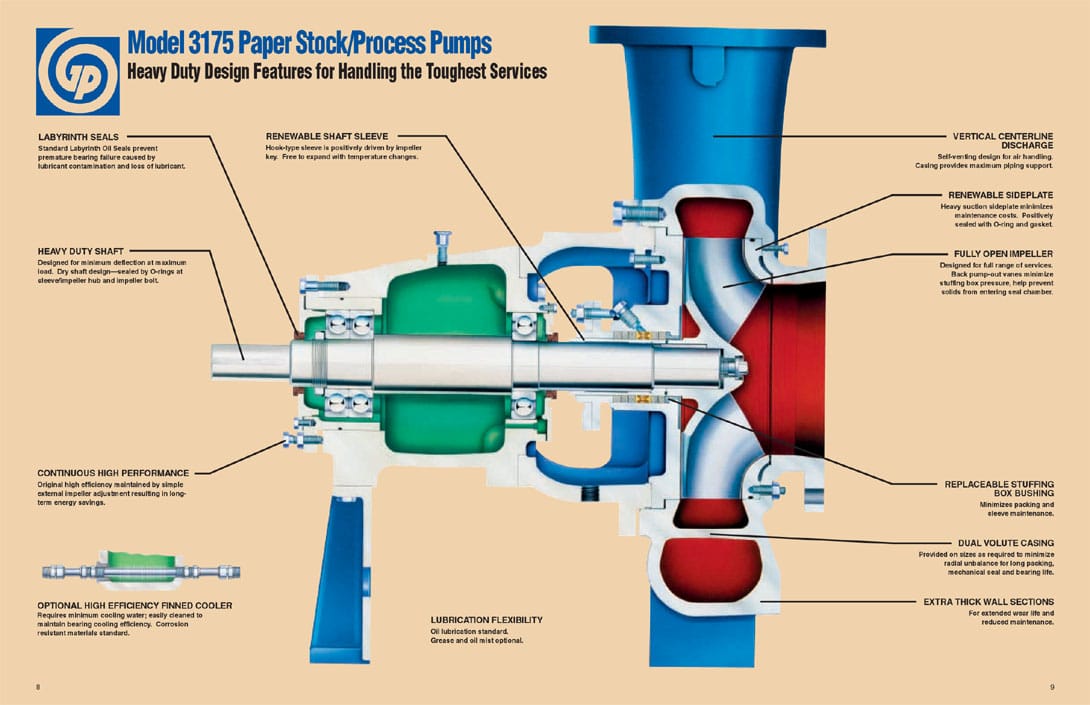

ITT Goulds Model 3175 Specifications


to 28000 GPM (6360 m3/h)


to 350 feet (107 m)


to 450°F (232°C)


to 285 PSIG (1965 kPa)

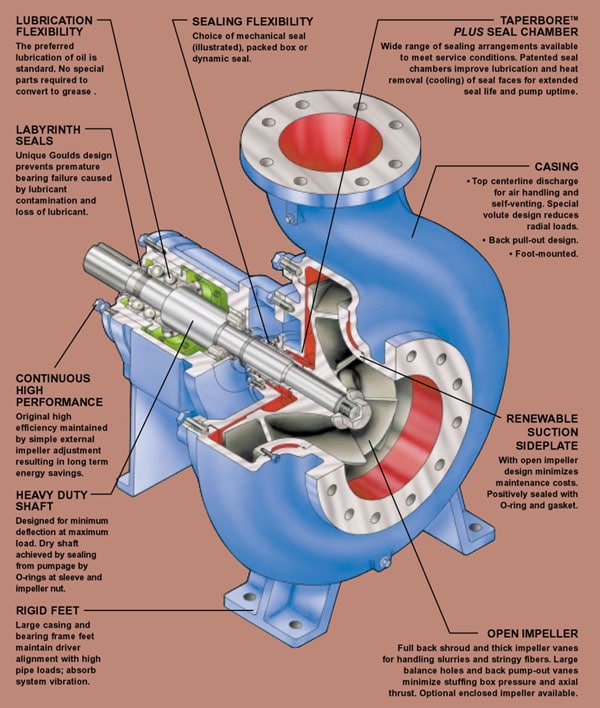

ITT Goulds Model 3180 Specifications


to 40000 GPM (9000 m3/h)


to 410 feet (125 m)


to 446° F (230° C)


to 16 bar (232 PSIG)
